    Heavy Duty Coiled Trailer Cable Electrical Wire For Vehicle Reverse Camera Systems

    Ask Lasest Price
    Brand Name : JIANLI
    Model Number : JLF002
    Certification : CE, ROHS, ISO9001:2008
    Price : negotiation / Sets
    Payment Terms : T/T, PAYPAL, Western Union
    Delivery Time : 7 -20 Days
    • Product Details
    • Company Profile

    Heavy Duty Coiled Trailer Cable Electrical Wire For Vehicle Reverse Camera Systems

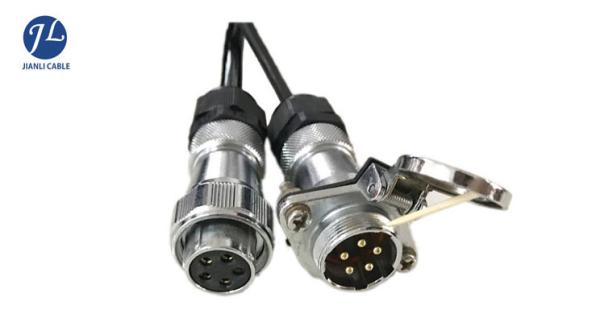

    5Pin Metal Waterproof Trailer Coiled Cable For Vehicle Safety System


    1. Product Specificaiton :


    ideo channel1-Channel; for video signal only
    Working length0.3 meter ~ 4.0 meter
    Housing and knurled nut- Brass and nickel-plated
    - Suitable for all weather conditions
    - Smart and neat design for quick coupling and decoupling procedure
    Waterproof & dustproofUsing threaded fittings plug and socket ensures every connection is watertight
    Internal housing- Bakelite
    - Heat resistant and extremely durable
    Insulation- Flexible PVC
    - Excellent recoil memory
    - Provides good shielding from flame, moisture and abrasion resistance
    Conductor- Copper wire
    - IACS approved copper for higher conductivity and stable signal transmission
    - It also provides
    power supply to the cameras

    2. Trailer Wiring

    WIth the tight coiling and durable thermoplastic polyurethane material used, this suzi coil ensure high availability and uptime all year round. In the unlikely event of a breakaway or decouping mishap, it has an elasticity of up 4 meter to avoid breakage, thus protecting the camera system .


    Connector
    5pin or 7pin trailer plug

    4pin aviation plug standard for all vehicle camera system
    Color

    Black

    work Length
    spiral cable : 1.5M,3M or 7M (can be customized)
    cable to camera or monitor: 1M of each ( length is optional)
    Diameter
    spiral wire OD:8.0MM PU
    cable to camera or monitor OD:5.0MM standard 26AWG shielding
    Conductor
    all cable is OFC copper conductor. including shielding wire.
    Custom 5pin 7pin trailer backup camera cableConductor conduction
    No Short circuit, No interruption of power supply
    all cables to be tested 100% before shipping.
    Application
    for one trailer mounted camera on automobiles like trailer, pickups, vans & SUVs.it is fit for all vehicle camera system.

    3. Specifications

    One Camera Heavy Duty Weather Resistant Rear View Camera Trailer Cable & Receptacle Set With 5-Contact Plug and Socket
    1. High quality 5-contact plug and socket Trailer cable set, With hand hook injection plugs.
    2. Designed for one trailer mounted camera on automobiles like trailer, pickups, vans & SUVs.
    3.Single cable carries video, audio, power and ground wires. One vehicle extended 3 ft cable to monitor with heavy duty weather resistant 4-Pin connectors . One vehicle extended 3 ft cable to rear view camera with heavy duty weather resistant 4-Pin connectors ( we also can do with RCA or BNC ,DC plug by customers' requirement).
    4.Weather resistant locking cable connectors and spring loaded socked covers.Coiled connector cable can extend up to 10ft (1.5m), 10 feet (3m), 23ft(7M) optional.
    5. Optional Male/Female 4-PIN to RCA adapters available (we can do it for you by your camera and monitor cable plug).

    1. Product name: Custom 5pin 7pin trailer cable
    2. Product brand: JIANLI
    3. Core wire adopts purity copper as conductor, having fast speed of transmission
    4. Outer diameter: 5.0mm and 8.0mm; environmental-friendly and fire-new PVC and TPU; waterproof connectors.
    5. High quality; ROHS,CE
